Digital manometers MO-05M

Comprasion table of MO-05M versions

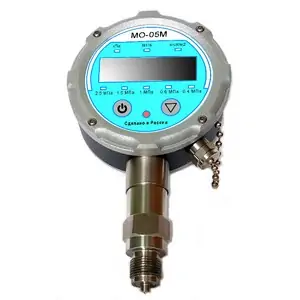

Digital manometer MO-05M, version 1


Features "Version 1":

  • LED display
  • Removable measuring part
  • Reduced error

Make an order

Main description:

The pressure gauges have an LED display with a removable measuring head. Measuring head (hereinafter - MH). The number of subranges is 5 or 6, depending on the measurement range. UML of pressure gauges from ±40 kPa to 100 MPa. The given error is from ±0.1% to ±0.4%. Climatic modification from -30 to +70 °С, from -10 to +70 °С or from +5 to +50 °С.

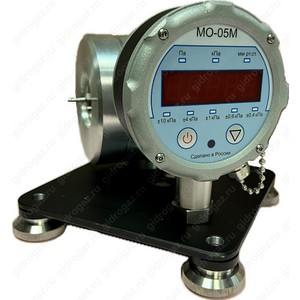

Digital manometer MO-05M, version 2


Features of "Version 2":

  • LED display
  • Reduced error
  • Removable measuring part «helix» type

Make an order

Main description:

The pressure gauges have an LED display with a helix type of MH and 5 measurement sub-ranges. UML of pressure gauges ± 10 kPa. The given error is from ±0.05% to ±0.4%. Climatic version from +18 to +28 °С.

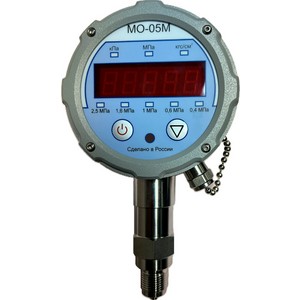

Digital manometer MO-05M, version 3


Features of "Version 3":

  • LED display
  • Reduced error
  • Non-removable measuring part

Make an order

Main description:

The pressure gauges have an LED display with a non-removable MH. The number of subranges is 5 or 6, depending on the measurement range. UML of pressure gauges from ± 2 kPa to 100 MPa. The given error is from ±0.02% to ±0.4%. Climatic version from -30 to +70 °C, from -10 to +70 °C or from +5 to +50 °C. For pressure gauges with a reduced error from ±0.02% to ±0.05% and for pressure gauges with URL 2 and 6 kPa, climatic version from +18 to +28 °С.

Digital manometer MO-05M, version 4, 4WS


Features of "Version 4":

  • LED display
  • Reduced error
  • Stationary measuring part «helix» type
  • Built-in weather station 4WS (additional option)

Make an order

Main description:

The pressure gauges have an LCD display with MH type "helix". Number of sub-ranges 5. UML of pressure gauges ±10 kPa. The given error is from ±0.05% to ±0.4%. Climatic version from +18 to +28 °С. Version 4WS has a built-in weather station.

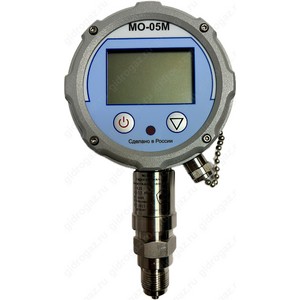

Digital manometer MO-05M, version 5, 5WS


Features of "Version 5":

  • LED display
  • Removable measuring part
  • Reduced error
  • Built-in weather station, using 5WS (additional option)

Make an order

Main description:

The pressure gauges have an LCD display and a removable MH. The number of subranges is 5 or 6, depending on the measurement range. UML of pressure gauges from ±40 kPa to 100 MPa. The given error is from ±0.1% to ±0.4%. Climatic modification from -30 to +70 °С, from -10 to +70 °С or from +5 to +50 °С. Execution 5WS has a built-in weather station.

Digital manometer MO-05M, version 6, 6WS


Features of "Version 6":

  • LED display
  • Non-removable measuring part
  • Reduced error
  • Built-in weather station, using 6WS (additional option)

Make an order

Main description:

The pressure gauges have an LCD display and a non-removable MH. The number of subranges is 5 or 6, depending on the measurement range. UML of pressure gauges from ±2 kPa to 100 MPa. The given error is from ±0.02% to ±0.4%. Climatic version from -30 to +70 °С, from -10 to +70 °С or from +5 to +50 °С. For pressure gauges with reduced error from ±0.02% to ±0.05% and for pressure gauges with UML 2 and 6 kPa, climatic version from +18 to +28 °С. Version 6WS has a built-in weather station.

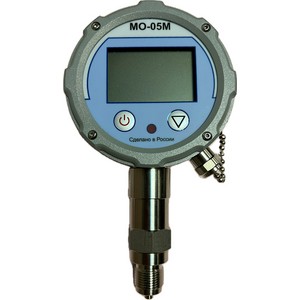

Digital manometer MO-05M, version 7, 7WS


Features of "Version 7":

  • LED display
  • Non-removable measuring part
  • Relative error
  • Built-in weather station, using 7WS (additional option)

Make an order

Main description:

The pressure gauges have an LCD display, non-removable MH and one measurement range. UML pressure gauges from 0.25 MPa to 100 MPa. In the measurement range from 0 to 15% of UML, pressure gauges have a reduced error of 15% of UML. In the measurement range from 15 to 100% UML, pressure gauges have a relative error from ±0.02% to ±0.4%. In the measurement range from -0.1 to 0 MPa, pressure gauges have a reduced error from 0.025% to 0.4%. Climatic version from -30 to +70 °С, from -10 to +70 °С or from +5 to +50 °С. For pressure gauges with relative error from ±0.02% to ±0.05%, climatic version from +18 to +28 °C. Version 7WS has a built-in weather station.

Digital manometer MO-05M, version 8, 8WS


Features of "Version 8":

  • LED display
  • Removable measuring part
  • Relative error
  • Built-in weather station, using 8WS (additional option)

Make an order

Main description:

The pressure gauges have an LCD display, a removable MH and one measurement range. UML pressure gauges from 0.25 MPa to 100 MPa. In the measurement range from 0 to 15% UML, pressure gauges have a reduced error of 15% of UML. In the measurement range from 15 to 100% UML, pressure gauges have a relative error from ±0.1% to ±0.4%. In the measurement range from -0.1 to 0 MPa, pressure gauges have a reduced error from 0.1% to 0.4%. Climatic version from -30 to +70 °С, from -10 to +70 °С or from +5 to +50 °С. Version 8WS has a built-in weather station.
