Compact execution with correction of zero and range.

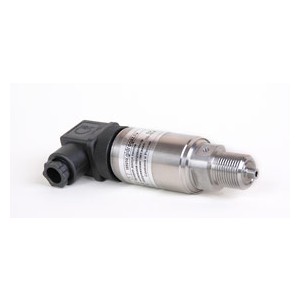

Sensors of excessive pressure of the MT series are intended for continuous and uniform transformation of pressure of liquids, gas, steam and so on in the unified current output signal (0-5 mA, 4-20 mA). Sensors work with the showing and data-acquisition equipment, regulators, in systems of automatic gaging, in nodes of the heataccount and other devices of automatic equipment.
All sensors of excessive pressure MT100M (Ех) are temperature-compensated on "0" and on all range of measurement, and also the possibility of adjustments "0" and range is provided in each sensor. Sensors are convenient for mounting, are not critical to change of polarity at connection, have the DIN 43650 connector. Is an analog of KRT pressure sensors.
For installation of sensors, we recommend to use specially developed switching instrument KPM-2 module the valve having drainage (drain valve). Detailed information on the module is in the section "Auxiliary equipment".
(MT100P sensor analog)
|Measuring range||Pressure of discharge is-0,1-0 MPas|
|Limit main blundered
range of changes
|± 0,15; ± 0,25; ± 0,5 %;|
|Resistance to climatic influences||-40(-55)°С +80°С.|
|Degree of protection against water and dust||IP65 in accordance with GOST 1425.|
|Relative humidity of air||до 95 % при 35°С.|
|Temperature of the measured environment||
(With addition radiator to +130 °C.)
|On resistance to mechanical influences sensors correspond||to execution of VI in accordance with GOST 12997-84|
|Output signal||0-5; 4-20 mA.|
|Supply voltage||from 16 to 42B (Ex - 24 V).|
|Mass of the sensor||no more than 0,3 kg|
(With addition radiator 205 mm.).
|Body diameter||34 mm.|
|Intertesting interval||3 years.|
|Average term of service||15 years.|
|Threaded connection||M12x1,5, M20x1,5, G1/2.|
|Vibration resistance, vibration strength||10G.|
|Case material||AISI304 stainless steel.|
|Union material||stainless steel 12X18H10T.|
|Sensor||silicon on sapphire is executed on technology.|
|Electric accession||DIN 43650.|
