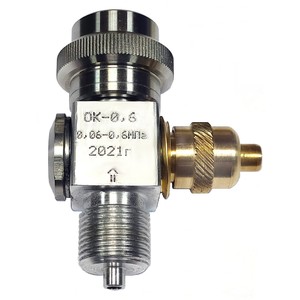

Restrictive valve OK-0.6 and OK-5 for overpressure protection

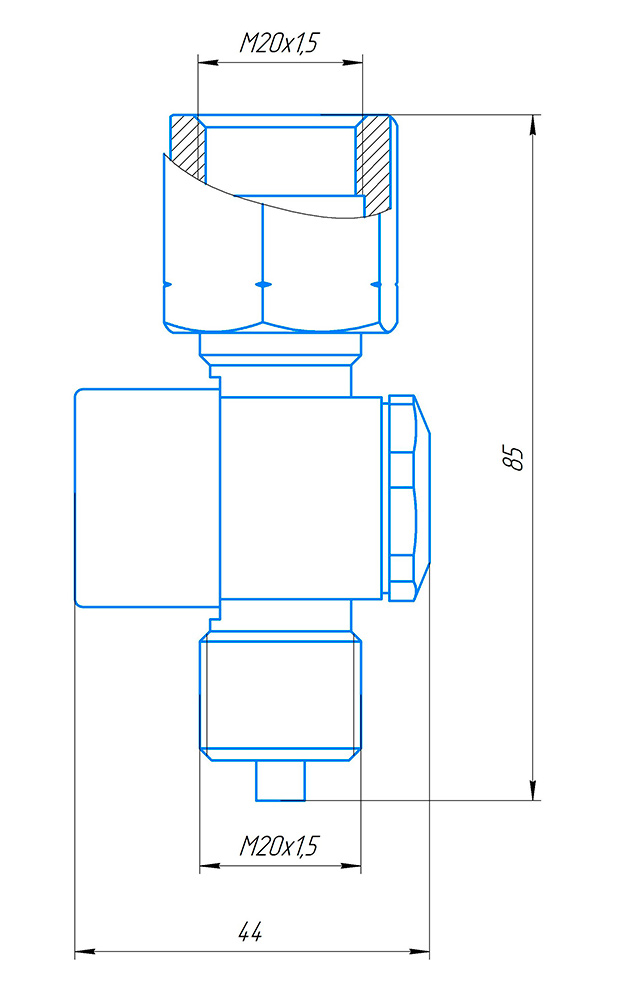

OK-5 scheme

OK-5 scheme

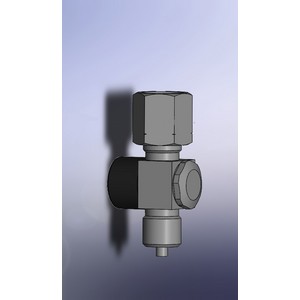

Download product 3D-model

The limiting valve OK-0.6 and OK-5 is an auxiliary device and belongs to the equipment of pipeline fittings. Designed to protect against mechanical destruction by overpressure of equipment when the set threshold is exceeded.

Documents and certifications may be present in a different language.

Read more

Equipment

  • OK-5 or OK-0.6 restrictive valve - 1 pc.
  • Passport (instruction manual) — 1 pc.
  • Spare sealing ring GOST 9833-73 008-012-2.5 - 1 pc.
  • Packing - 1 pc.

Product Specifications

Restrictor valve OK-0.6 ОК-5
Maximum pressure Pmax 1 MPa 60 MPa
Tripping limits 0.06-0.6 MPa 0.5-5 MPa
Body Material ЛС59; D16T: AISI 304 AISI 304
Desktop Air Oil; water
Class A valve plug tightness GOST 9544-2005 GOST 9544-2005
Medium temperature range from -20 +50° С from -20 +50° С
Length no more 90mm 90mm
Weight no more 225 gr. 255 gr.
Setting to trigger by default 0.25 MPa 2.5 MPa
