Manometers model MO-05 к.т. 0,05; 0,025%

ТУ 4212-017-79005006-2012

We also offer a program (software) designed to automate the verification of dial gauges.

Contact us


Pressure measuring equipment MO-05

Appointment of measuring instruments

Digital exemplary pressure gauges MO-05 manufactured by LLC Gidrogazkomplekt, are designed for accurate measurements with indication of current measured values ​​on a digital display, with a permissible reduced basic pressure measurement error on each subrange of no more than ± γ: 0.025% and 0.05%.

Scope in the field of state regulation of ensuring the uniformity of measurements:

Transfer of the size of pressure units when checking pressure measuring instruments.

Certificate of type approval of measuring instruments RU.C.30,004, A No. 51788 dated 08.08.2013.

Registration number 54409-13. Order No. 659 dated June 28, 2013.

Documents and certifications may be present in a different language.

Read more

Complete set

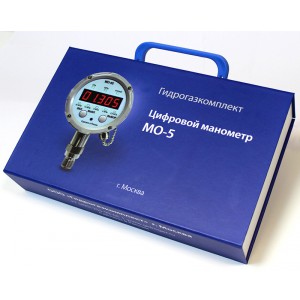

manometer digital

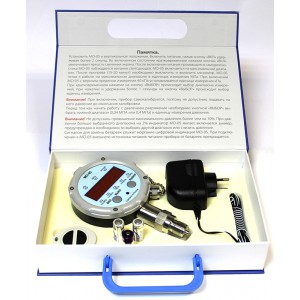

The manometer digital MO-05 - 1 piece.

Press

Packing - 1 piece.

measuring pressure

The operation manual (passport) - 1 piece.

pressure sensors

Protective cap of a measuring channel - 1 piece.

pressure discharge

The certificate of a model gage - 1 piece.

testing and measuring complex

Lithium batteries of the AA format - 3 pieces.

The water-proof boxing with the valve of alignment of atmospheric pressure is delivered on demand.

As a source of pressure we recommend to get the press manometrical our production PUM-100M, PUM-60M, PUM-40M, PUM-6M, 2113M.

The manometer M0-05 - DI - 16(16,10,6,4,2,5) - МПа - 0,05 - К - БП
  1 2 3 4 5 6
  1. Code of a type of pressure.
    - superfluous - DI
    - superfluous - discharge - DIV
  2. The top limit of pressure (subranges) after turning on of the manometer.
  3. Unit of measure at turning on of the MPa manometer.
  4. Limit of the allowed given main error.
  5. Execution "OXYGEN".
  6. Power supply unit.

Versions

Attention! We pay your attention that manometers of 40 kPa, 0.25mpa and 2.5mpa it is allowed to use only on pneumatics.

Are issued four versions of MO-05 manometers with limits the given error allowed main: 0,025%; 0,05%.

  1. MO-05 with the top limit of measurement 0,25mpa has the allocated ranges of measurement of pressure:
    40 kPa; 60 kPa; 100 kPa; 160 kPa; 250 kPa.
    0,04mpa; 0,06mpa; 0,1mpa; 0,16mpa; 0,25mpa.
    0,4kgs/cm2; 0,6kgs/cm2; 1kgs/cm2; 1,6kgs/cm2; 2,5kgs/cm2.
    - 0,1mpa; - 100 kPa; - 1kg/cm2.
    Measurement of discharge is performed on range 0,04mpa.
  2. MO-05 with the top limit of measurement 2,5mpa has the allocated ranges of measurement of pressure:
    400 kPa; 600 kPa; 1000 kPa; 1600 kPa; 2500 kPa.
    0,4mpa; 0,6mpa; 1 MPas; 1,6mpa; 2,5mpa.
    4kgs/cm2; 6kgs/cm2; 10kgs/cm2; 16kgs/cm2; 25kgs/cm2.
  3. MO-05 with the top limit of measurement of 16 MPas has the allocated ranges of measurement of pressure:
    2500 kPa; 4000 kPa; 6000 kPa; 10000 kPa; 16000 kPa.
    2,5mpa; 4 Of MPa; 6 MPas; 10 MPas; 16 MPas.
    25kgs/cm2; 40kgs/cm; 60kgs/cm2; 100kgs/cm2; 160kgs/cm2.
  4. MO-05 with the top limit of measurement of 60 MPas has the allocated ranges of measurement of pressure:
    10000 kPa; 16000 kPa; 25000 kPa; 40000 kPa; 60000 kPa.
    10 MPas; 16 MPas; 25 MPas; 40 MPas; 60 MPas.
    100kgs/cm2; 160kgs/cm2; 250kgs/cm2; 400kgs/cm2; 600kgs/cm2.

In each manometer there is an Overload function. In case of excess of the top limit of excessive pressure for 2%, the audio signal warning the user about need to reduce pressure is distributed.

Product Specifications

Limit of the allowed given main error of measurement of pressure on each subrange no more ±γ: 0,025%; 0,05%
Units of measure: kPa, MPa. kgf/cm2
Excessive pressure: 0-60mpa.
Discharge pressure: - 0,1-0mpa.
The variation of indications does not exceed: 0,5γ.
Complementary error from change of ambient temperature on each 10 °C: ±0,5γ.
On resistance to climatic influences of MO-05 has execution in accordance with GOST 15150-69: - for work at a temperature:
From +18 °C to +28 °C.
On security from penetration in external solid bodies (dust and water): IP65.
The number of the measured ranges in one MO-05 manometer: to 6.
On resistance to mechanical influences of MO-05 corresponds to execution: VI in accordance with GOST 12997-84.
Electric is carried out:

a) from three lithium batteries of the AA format voltage is 1,5 volts.
b) from the external power supply.

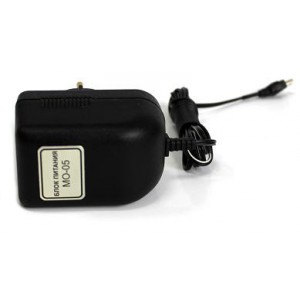

In each manometer under a cover of a battery compartment there is mini usb for operation of the device from the external power supply or the computer. The external power supply is delivered on demand.

The number of the measured ranges in one MO-05 manometer: to 6.
Time of a continuous work of the MO-05 manometer from batteries: not less than 300 hours.

The MO-05 manometer has three modes of brightness of a luminescence of digital LED indication. This characteristic is specified for the low level of a luminescence. At increase in brightness of a luminescence of digital indication, time of a continuous work of the MO-05 manometer decreases.
Average time between failures: 15000 hours.
Weight: no more than 0,8 kg.
Leading dimensions: 180х108х50 mm.
Threaded connection: M20x1,5.
Union material stainless steel: AISI 304.
Manometer case material: D16T aluminum alloy.
