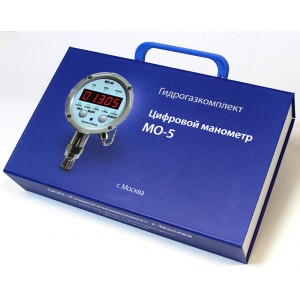

Digital equipment for measuring pressure MO-05

Attention! At the order of the Manometer of digital MO-05 it is necessary to specify need of existence of the certificate of a model gage.

Manometers digital MO-05 of production of LLC Gidrogazkomplekt, are intended for exact measurements with indication of the current measured values on a digital board: excessive pressure of liquids and gases, discharge of gases. A scope in the sphere of state regulation of ensuring unity of measurements: Transfer of the size of units of pressure during the checking, calibration and tests of gages of pressure. The certificate on the statement like measuring instruments of RU.C.30,004,A No. 51788 from 08.08.2013. Registration No. 54409-13. The order No. 659 of June 28, 2013.

Documents and certifications may be present in a different language.

Read more

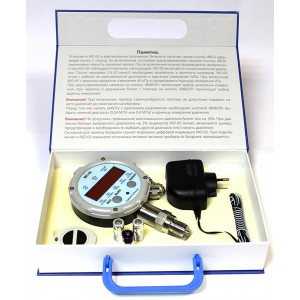

Complete set

manometer digital

The manometer digital MO-05 - 1 piece.

Manometers

Packing - 1 piece.

Digital equipment for measuring pressure

The operation manual (passport) - 1 piece.

Press

Protective cap of a measuring channel - 1 piece.

Pump

The certificate of a model gage - 1 piece.

pressure sensors

Lithium batteries of the AA format - 3 pieces.

The water-proof boxing with the valve of alignment of atmospheric pressure is delivered on demand.

As a source of pressure we recommend to get the press manometrical our production PUM-100M, PUM-60M, PUM-40M, PUM-6M, 2113M.

Versions

Attention!

The maximum overload of pressure gauges without consequences for the metrological characteristics is 15% of the FS, except for pressure gauges with a limit of 100 MPa with an SG from ± 0.1% to ± 0.4%, where the maximum overload is 5% of the FS and pressure gauges with a limit of 2.5 MPa with an SG from ± 0.1% to ± 0.4%, where the maximum overload is 10% of full value. (The value of the overload pressure of 25% specified in the operating manual of the GKMT 410200.012-012 PS paragraph 2.4 is considered invalid)

Please note that we recommend using pressure gauges with a nominal value of 40kPa, 0.25MPa and 2.5MPa only on pneumatics.

MO-05 with an upper measurement limit of 2.5 MPa is recommended to be used in conjunction with an OK-5 restrictive valve.

There are 8 variants of MO-05 pressure gauges with the limits of the permissible basic reduced error for each range: 0.1%; 0.15%; 0.25%; 0.4%.

  1. MO-05 with a measurement limit of ± 2kPa, has dedicated pressure measurement ranges:
    ± 400Pa; ± 600Pa; ± 1000Pa; ± 1600Pa; ± 2000Pa;
    ± 0.4kPa; ± 0.6kPa; ± 1kPa; ± 1.6kPa; ± 2kPa;
    ± 3mmHg; ± 4.5mm Hg; ± 7.5mm Hg; ± 12mmHg; ± 15mmHg
    Ranges ± 0.4kPa; ± 0.6kPa available only with accuracy class 0.25% or 0.4%
  2. MO-05 with a measurement limit of ± 6kPa, has dedicated pressure measurement ranges:
    ± 1000Pa; ± 1600Pa; ± 2500Pa; ± 4000Pa; ± 6000Pa;
    ± 1kPa; ± 1.6kPa; ± 2.5kPa; ± 4kPa; ± 6kPa;
    ± 7.5mmHg; ± 12mmHg; ± 19mmHg; ± 30mmHg; ± 45mmHg
  3. MO-05 with a measurement limit of ± 40kPa, has dedicated pressure measurement ranges:
    ± 6000Pa
    ± 6kPa; ± 10kPa; ± 16kPa; ± 25kPa; ± 40kPa.
    ± 45mmHg; ± 75mmHg; ± 120mm Hg; ± 187.5 mm Hg; ± 300mmHg
  4. MO-05 with a measurement range of -0.1 to 0.25 MPa, has dedicated pressure measurement ranges:
    0-400kPa; 0-600kPa; 0-1000kPa; 0-1600kPa; 0-2500kPa.
    0-0.4MPa; 0-0.6MPa; 0-1MPa; 0-1.6MPa; 0-2.5MPa.
    0-4kgs / cm2; 0-6kgs / cm2; 0-10kgs / cm2; 0-16kgs / cm2; 0-25kgs / cm2.
    -0.1-0MPa; -100-0kPa; -1-0kg / cm2.
    The measurement of the vacuum is carried out in the range of 0.4 MPa.
  5. MO-05 with a measurement limit of 16MPa has dedicated pressure measurement ranges:
    0-400kPa; 0-600kPa; 0-1000kPa; 0-1600kPa; 0-2500kPa.
    0-0.4MPa; 0-0.6MPa; 0-1MPa; 0-1.6MPa; 0-2.5MPa.
    0-4kgs / cm2; 0-6kgs / cm2; 0-10kgs / cm2; 0-16kgs / cm2; 0-25kgs / cm2.
    -0.1-0MPa; -100-0kPa; -1-0kg / cm2.
    The measurement of the vacuum is carried out in the range of 0.4 MPa.
  6. MO-05 with a measurement limit of 16MPa has dedicated pressure measurement ranges:
    0-2500kPa; 0-4000kPa; 0-6000kPa.
    0-2.5MPa; 0-4MPa; 0-6MPa; 0-10MPa; 0-16MPa.
    0-25kgs / cm2; 0-40kgs / cm; 0-60kgs / cm2; 0-100kgs / cm2; 0-160kgs / cm2.
  7. MO-05 with a measurement limit of 60MPa has dedicated pressure measurement ranges:
    0-10MPa; 0-16MPa; 0-25MPa; 0-40MPa; 0-60MPa.
    0-100kgs / cm2; 0-160kgs / cm2; 0-250kgs / cm2; 0-400kgs / cm2; 0-600kgs / cm2.
  8. MO-05 with a measurement limit of 100 MPa has dedicated pressure measurement ranges:
    0-25MPa; 0-40MPa; 0-60MPa; 0-70MPa; 0-100MPa.
    0-2500kgs / cm2; 0-400kgs / cm2; 0-600kgs / cm2; 0-700kgs / cm2; 0-1000kgs / cm2.

Any MO-05 is produced in oxygen version, except for pressure gauges with ranges of ± 40 kPa.

If we take into account the presence of several units of measurement in each pressure gauge and up to six dedicated measurement ranges are counted, the five above-listed pressure gauges replace 60 reference pressure gauges!

Product Specifications

Limit of the allowed given main error of measurement of pressure on each subrange no more ±: 0,1; 0,15; 0,25; 0,4%
Units of measure: mmilimetr of a mercury column, Pa, kPa, MPa. kgf/cm2
Excessive pressure 0-60mpa
Discharge pressure - 0,1-0mpa
The variation of indications does not exceed 0,5γ
Complementary error from change of ambient temperature on each 10 °C ±0,5γ
On resistance to climatic influences of MO-05 has execution in accordance with GOST 15150-69 for work at a temperature from +5 °C to +50 °C. UHL3,1 * (+5+50) °C
On security from penetration in external solid bodies (dust and water) IP65
The number of the measured ranges in one MO-05 manometer to 6
On resistance to mechanical influences of MO-05 corresponds to execution VI in accordance with GOST 12997-84
Electric is carried out

a) from three lithium batteries of the AA format voltage is 1,5 volts.

b) from the external power supply.

In each manometer under a cover of a battery compartment there is mini usb for operation of the device from the external power supply or the computer. The external power supply is delivered on demand.
Time of a continuous work of the MO-05 manometer from batteries not less than 300 hours. The MO-05 manometer has three modes of brightness of a luminescence of digital LED indication. This characteristic is specified for the low level of a luminescence. At increase in brightness of a luminescence of digital indication, time of a continuous work of the MO-05 manometer decreases.
Average time between failures 15000 hours
Weight no more than 0,8 kg
Leading dimensions 180х108х50 mm
Threaded connection M20x1,5
Union material AISI 304 stainless steel
Manometer case material D16T aluminum alloy

For more information contact our sales department by phone. +7 (495) 255-22-96, +7(495) 781-88-63.
