Crane of high pressure KVD400, KVD600, KVD1000

Contact us

Equipment for cutting off the pressure device KVD40, KVD60, KVD100

The crane of high pressure KVD400, KVD600, KVD1000 is used to pressure device cut-off (the manometer, the pressure sensor, etc.) from the highway. Structurally the crane belongs to the category of needle.

Small efforts of a cut-off of pressure, low price, small dimensions, high reliability all this is distinctive feature of this crane.

Also we have an option with self-tightening jig.

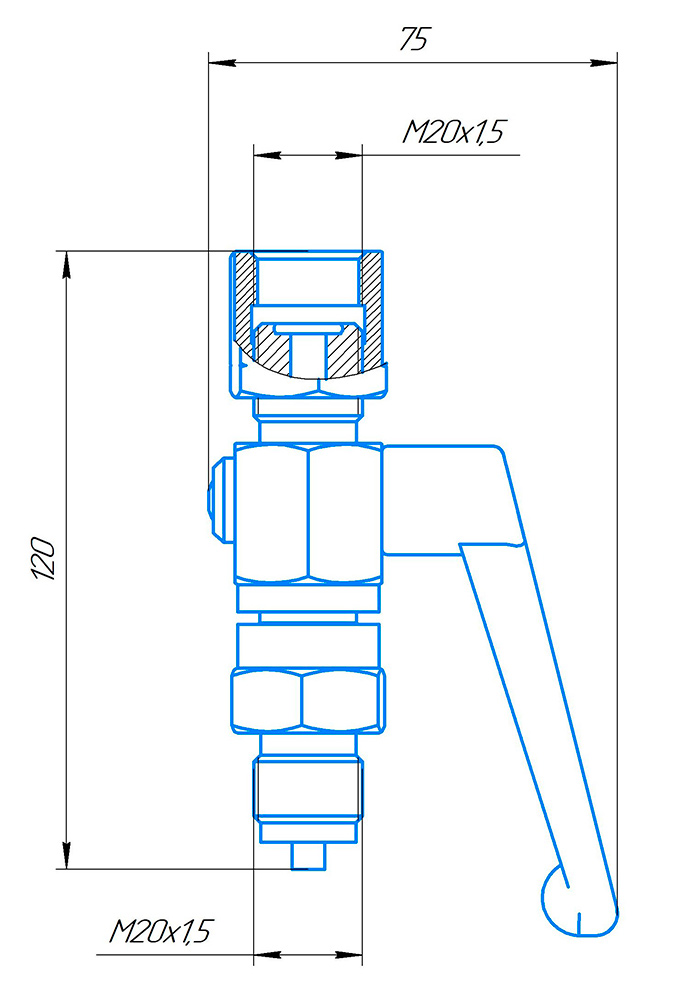

High-pressure crane scheme

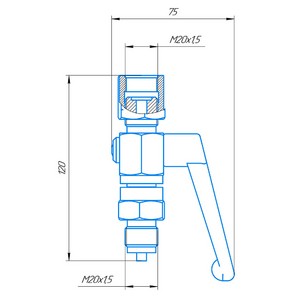

High-pressure crane scheme

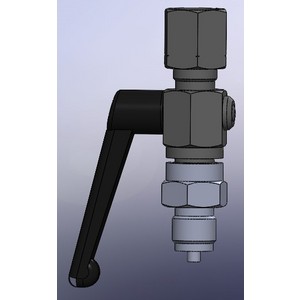

Download product 3D-model

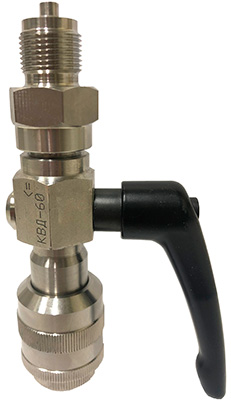

KVD-60 with self-tightening jig

Documents and certifications may be present in a different language.

Read more

Product Specifications

Maximum pressure of a cut-off KVD400 - 400 kgfs/cm2
KVD600 - 600 kgfs/cm2
KVD1000 - 1000 kgfs/cm2
Threaded connection by default to the highway - M20x1,5
to the device - M20x1,5
Material stainless steel, titanium, ceramics
Weight 300 grams


For more information contact our sales department by phone. +7 (495) 255-22-96, +7(495) 781-88-63.
