Auto clamping jig

Отзывы: 0

Contact us


Equipment for fast assembly-disassembly of metrological devices

Purpose

Auto clamping jig serves for fast mounting and dismantle of metrological devices (pressure sensors, manometers and etc.) in the course of their checking at the testing stand in metrological laboratories, and also when molding different devices and highways. This device is manufactured of high-quality stainless steel, provides reliable connection between the device and the working (measured) environment.

Design features:

Auto clamping jig does not demand use of fork spanners. The calibrated device joins Auto clamping jig by effort of a hand and provides reliable connection to 60 MPas.

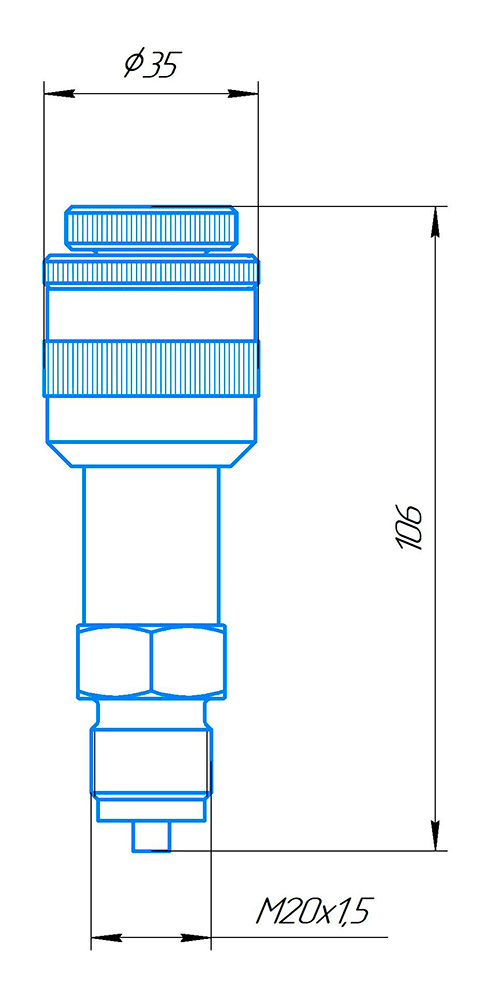

Scheme of auto clamping jig

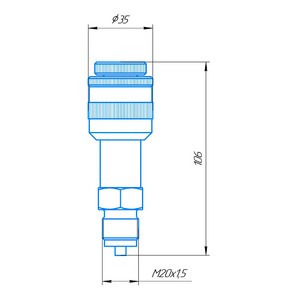

Scheme of auto clamping jig

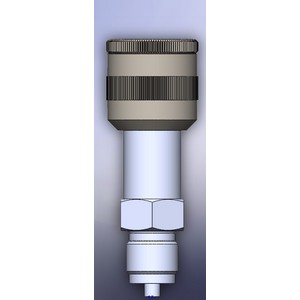

Download product 3D-model

Example 1

Example 1

Example 2

Example 2

Documents and certifications may be present in a different language.

Read more

Product Specifications

Union thread M1 (M20x1,5).
Female threaded connection M1 (M20x1,5).
Material 12X18H10T
Length 98 mm.
Width 35 mm.
Вес 120 grams
Service life 15 years

For more information contact our sales department by phone. +7 (495) 255-22-96, +7(495) 781-88-63.
