Collector equipment with a radiator KS-2T

The collector is developed for installation in highways of thermal networks with a temperature taken environments to 160 degrees for installation of devices of measurement of pressure upon it: sensor and manometer and so on. The collector joins the highway by means of a cap nut on the union which is welded in to the highway with the threaded connection of M20x1,5 (1/2). The cap nut considerably simplifies installation to the highway of a collector providing reliable connection with the highway. The collector is equipped with two radiators for dumping of temperature of the taken environment from 160 to 100 degrees. In addition the collector can be equipped with two cap nuts with an internal thread of M20x1,5 and the built-in cranes for a highway cut-off.

Option: it is equipped with two cap nuts with an internal thread of M20x1,5 and the built-in cranes for a highway cut-off.

Option: it is equipped with two cap nuts with an internal thread of M20x1,5 and the built-in cranes for a highway cut-off.

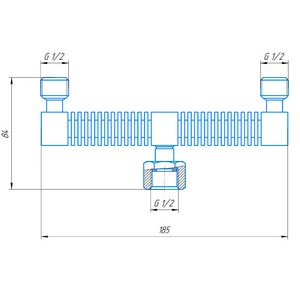

Scheme of collector with radiator KS-2T

Scheme of collector with radiator KS-2T

Download product 3D-model

Purpose:

KS-2T is intended:
- for switching of devices of measurement of pressure (pressure sensors, manometers and тд) with the highway;
- for reduction of temperature of the taken environment.
- for check of the device of pressure on "0";
- for safe and convenient mounting and dismantle of devices of measurement of pressure by means of a cap nut;
- for an exception of impact of hydroblow;

Design features:

KS-2T has one accession to the highway for two devices for measurement of pressure at once at the same time has a radiator for decrease in temperature of the taken environment. The collector is made of high-quality stainless steel. Has reliable welded connections. It is suitable for repair. Each union of a collector can have the serviced damper and a cap nut.
The valve necessary at mounting of manometers, pressure sensors etc. is provided in a design of KS-2T drainage (drain valve) (option).

Example of connection of two devices.

Example of connection of two devices.

Documents and certifications may be present in a different language.

Read more

Product Specifications

KS-2T is molded by pressure 6.0 MPa (execution to 30 MPas is possible).
Working pressure 4,0 MPas (25 MPas).
KS-2T has the union for accession to the highway M20x1,5.
For accession to pressure devices thread G1/2 or a cap nut with an internal thread of M20x1,5.
Weight no more than 900 grams.
Material stainless steel 08kh18n.
Tightness class B in accordance with GOST 9544-93
Guarantee 2 years.
Service life 15 years.

For more information contact our sales department by phone. +7 (495) 255-22-96, +7(495) 781-88-63.
