Universal filter FUH

Отзывы: 0

Contact us

Auxiliary equipment for cleaning the working fluid

The filter is an accessory. Designed to clean the working fluid from dirt in presses designed for calibration of pressure gauges with a seat with an internal thread M20x1.5. The filter is serviceable and, if necessary, can be disassembled to replace the filter element or clean it.

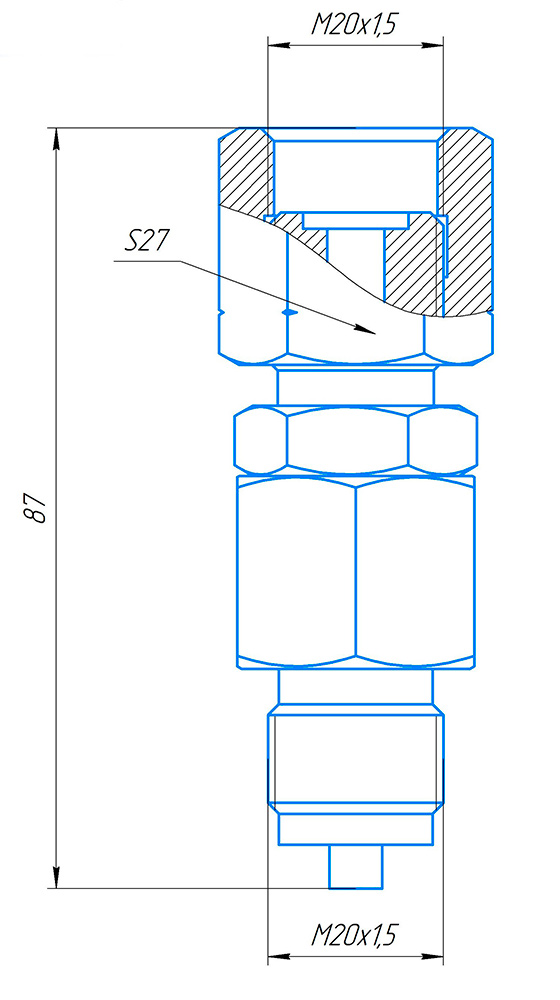

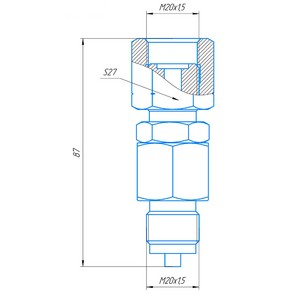

Scheme of universal hydraulic filter

Scheme of universal hydraulic filter

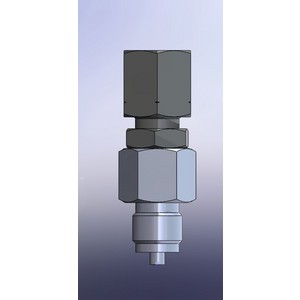

Download product 3D-model

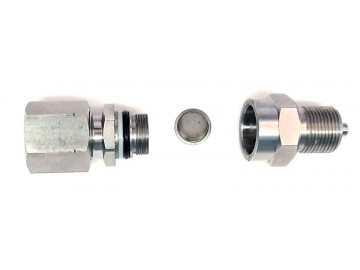

Universal hydraulic filter, disassembled

Universal hydraulic filter, disassembled

Documents and certifications may be present in a different language.

Read more

  • Universal hydraulic filter - 1 pc.
  • Spare filter - 1 pc.
  • Passport (instruction manual) - 1 pc.
  • Packing - 1 pc.

Product Specifications

Working pressure Pmax 60 MPa
Length, no more than 85 mm
Weight, no more than 222 gr

For more information contact our sales department by phone. +7 (495) 255-22-96, +7(495) 781-88-63.
