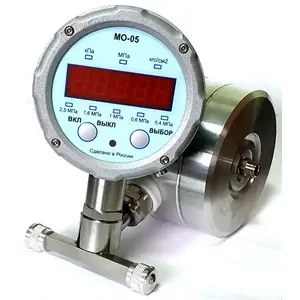

Digital manometer MO-05M, version 2

Limit of permissible reduced error, % of measurement subrange

0,05; 0,1; 0,15; 0,25; 0,4

Measure units

Pa, kPa, mmHg

Measurement subranges, MPa

- pressure-vacuum

From (from -0,0004 to 0,0004) to (from -0,01 to 0,01)

Calibration interval

1 year - ±0,05 %; 2 years - ±0,1; ±0,15% ±0,25; ±0,4%

In terms of resistance to climatic influences, they are made in accordance with GOST 15150-69

- UHL3.1 (+18 ÷ +28 ^°С);

Rate of protection against ingress of dust and water, in accordance with GOST 14254-2015

IP65

Number of subranges in one pressure gauge

5

In accordance with GOST R 52931-2008, in terms of resistance to mechanical stress, it corresponds to the performance group

N4

Electrical power is provided

a) from three lithium batteries of the AA format voltage of 1.5 volts.

b) from an external power source.

The time of continuous operation of the MO-05M pressure gauge from batteries is at least 300 hours. MO-05M pressure gauge has three brightness modes glowing digital LED indication. This characteristic is indicated for a low level of luminescence. With an increase the brightness of the glow of the digital indication, the time of continuous operation of the MO-05M pressure gauge decreases.

Mean time between failures

150000 hours

Weight, kg, no more than

4,3

Overall dimensions (width×length×height), mm, no more than

145х204х193

Thread connection

"Herringbone"

Nozzle material

stainless steel AISI 304

Manometer case material

D16T Aluminum Alloy
