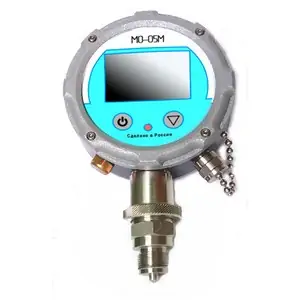

Digital manometer MO-05M, version 5, 5WS

Comprasion table of MO-05M versions

ТУ 4212-020-7900519-2019

Features of "Version 5":

  • LED display
  • Removable measuring part
  • Reduced error
  • Built-in weather station, using 5WS (additional option)

Contact us


General description

Digital pressure gauges MO-05M manufactured by Gidrogazkomplekt LLC are designed to measure excess pressure, atmospheric pressure, temperature and relative humidity. Scope in the field of state regulation of ensuring the uniformity of measurements: Transfer of the size of pressure units during verification, calibration and testing of pressure measuring instruments.

Registration No. 82489-21 approved by order of the Federal Agency for Technical Regulation and Metrology dated August 4, 2021. No. 1608.

Information about MO-05M pressure gauges in FGIS "ARSHIN":

https://fgis.gost.ru/fundmetrology/registry/4/items/1392078

Documents and certifications may be present in a different language.

Read more

Package set

pressure transmitters

Digital manometer МО-05М - 1 pcs.

vacuum sensors

Package - 1 pcs.

shut-off valve

Operation manual (passport) - 1 pcs.

tap for pressure gauge

Protective cap of a measuring channel - 1 pcs.

table hydraulic press

The certificate of a model gage - 1 pcs.

pressure sensor

Lithium batteries of the AA format - 3 pcs.

The water-proof boxing with the valve of alignment of atmospheric pressure is delivered on demand.

As a source of pressure we recommend to get the press manometrical our production PUM-100M, PUM-60M, PUM-40M, PUM-6M, 2113M.

Product Specifications

Limit of permissible reduced error, % of measurement subrange

0,1; 0,15; 0,25; 0,4

Measure units

Pa, kPa, MPa, kgf/cm2, mBar, Bar, mmHg, psi

Measurement subranges, MPa

- underpressure

- overpressure

- pressure-vacuum



From -0,1 to 0

From (from 0 to 0,04) to (from 0 to 100)

From (from -0,006 to 0,006) to (from -0,04 to 0,04)

Calibration interval

1 year - using 5WS; 2 years - ±0,1; ±0,15%; ±0,25%; ±0,4%

Measurement ranges of the weather station (additional option):

- atmospheric pressure, mmHg.

- relative humidity, %

- ambient air temperature, °С



from 600 to 800

from 20 to 90

from +5 to +50

Limits of permissible absolute measurement error:

- atmospheric pressure, mmHg.

- relative humidity, %

- ambient air temperature, °С



±1,5

±7

±1

Additional error caused by the deviation of the ambient temperature from the temperature range from +21 to +25 °С in the range of operating temperatures, %/10 °С

0,8γ (Pressure gauges manufactured with climatic version from +5 to +50 °С, don't have an additional error)

In terms of resistance to climatic influences, they are made in accordance with GOST 15150-69

- UHL3.1 (-30 ÷ +70 °С);

- UHL3.1 (-10 ÷ +70 °С);

- UHL3.1 (+5 ÷ +50 °С).

Rate of protection against ingress of dust and water, in accordance with GOST 14254-2015

IP65

Number of subranges in one pressure gauge

5 or 6

In accordance with GOST R 52931-2008, in terms of resistance to mechanical stress, it corresponds to the performance group

N4

Electrical power is provided

a) from three lithium batteries of the AA format voltage of 1.5 volts.

b) from an external power source.

The time of continuous operation of the MO-05M manometer from batteries is at least 300 hours. The MO-05M manometer has a screen backlight. When the screen backlight is turned on, the time of continuous operation of the MO-05M pressure gauge decreases.

Mean time between failures

150000 hours

Weight, kg, no more than

0,8

Overall dimensions (width×length×height), mm, no more than

108х49х220

Thread connection

М20х1,5

Nozzle material

stainless steel AISI 304

Manometer case material

D16T Aluminum Alloy

For more information contact our sales department by phone. +7 (495) 255-22-96, +7(495) 781-88-63.
